6. Mask Assembly

Reassembling Your Mask

Push the Seal firmly into place on the Frame .
Push the Swivel onto the Elbow .
Slide the Forehead Clip onto the top of the Frame .
Hook the Headgear Clips onto the Frame .

💡 Mask Assembly Tip

Check the Swivel Swivel is not stuck in the CPAP tube.

Assembly Diagram

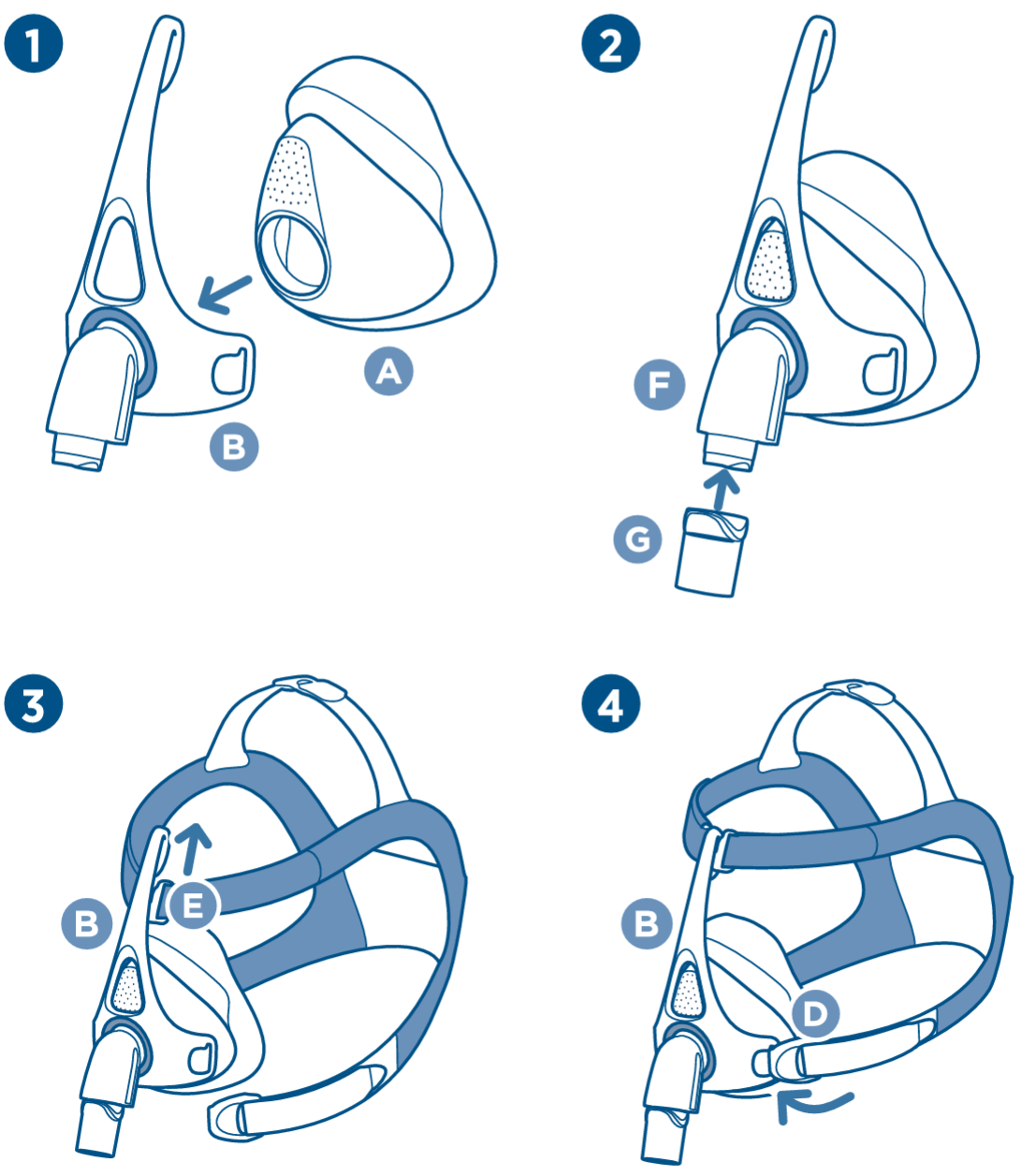

Mask assembly diagram:
1. Push the Seal firmly into place on the Frame.
2. Push the Swivel onto the Elbow.
3. Slide the Forehead Clip onto the top of the Frame.
4. Hook the Headgear Clips onto the Frame.

How to reassemble the F&P Vitera™ full-face mask
