F&P Vitera Full Face
Mask User Guide
3. Mask Parts
Understanding Your Mask Components

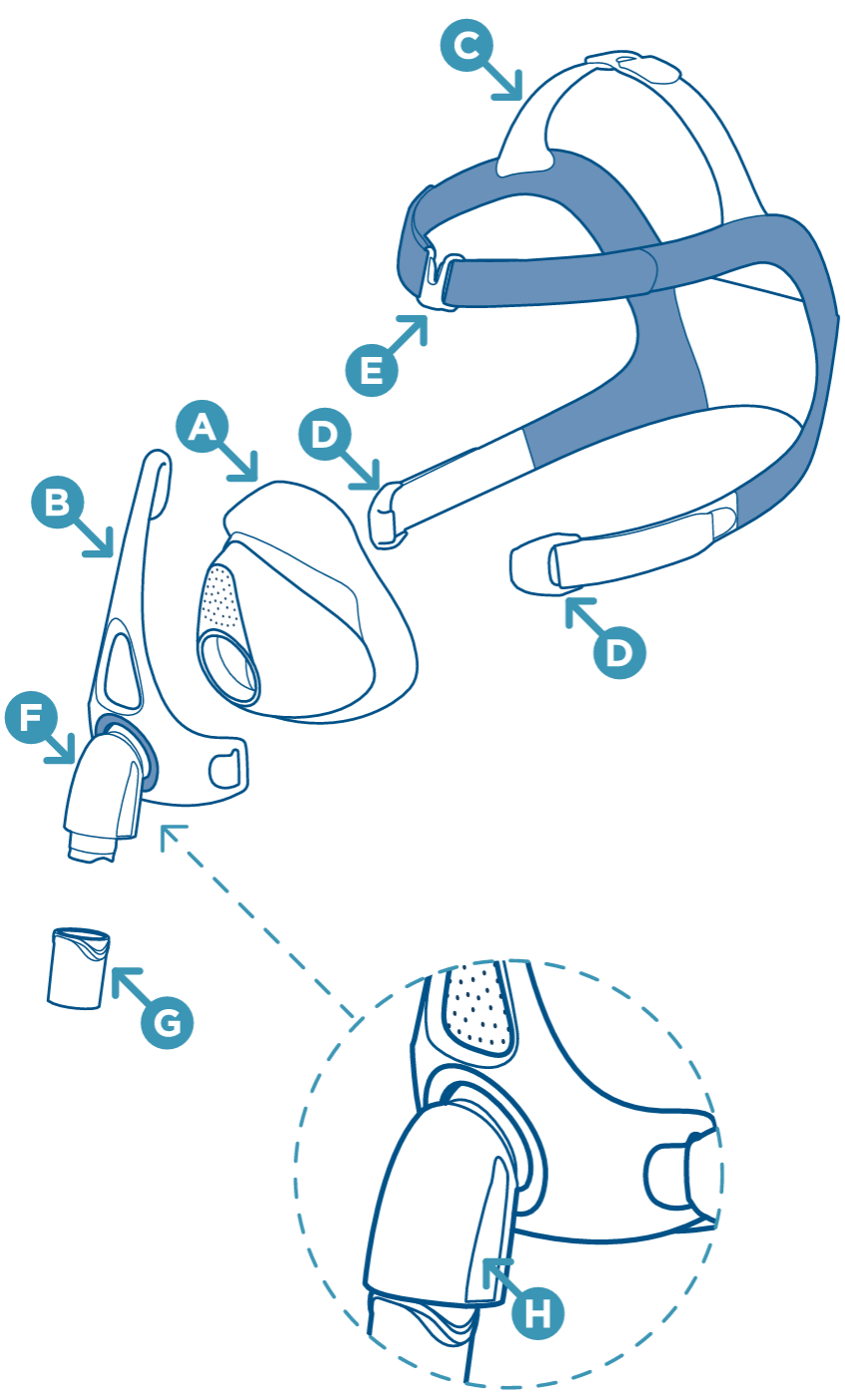

Refer to the mask diagram below.
 Seal
|
 Forehead Clip
|
 Frame
|
 Elbow
|
 Headgear
|
 Elbow Swivel
|
 Headgear Clips
|
 Elbow Side Vents
|
⚠️ Note
The Elbow is permanently attached to the Frame . It is not intended to be removed from the mask by the home user. If removed unintentionally, refer to the image below.

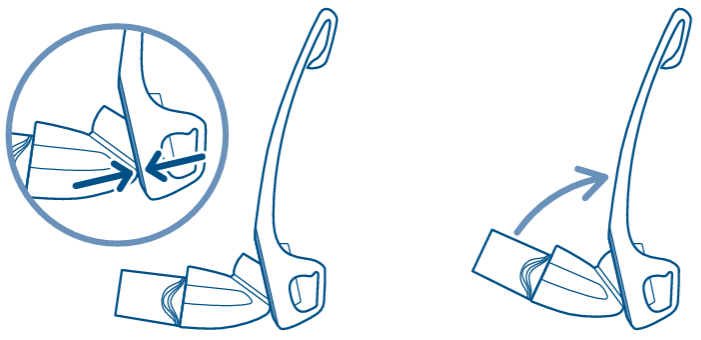

Advanced Assembly
To assemble Elbow back into Frame:
- Position the Elbow so it is facing upward.
- Push the Elbow at an angle and rotate into the Frame until the Elbow pops in.
